Dziban: Balancing Agency & Automation in Visualization Design via Anchored Recommendations

Published at CHI in Honolulu, HI 2020

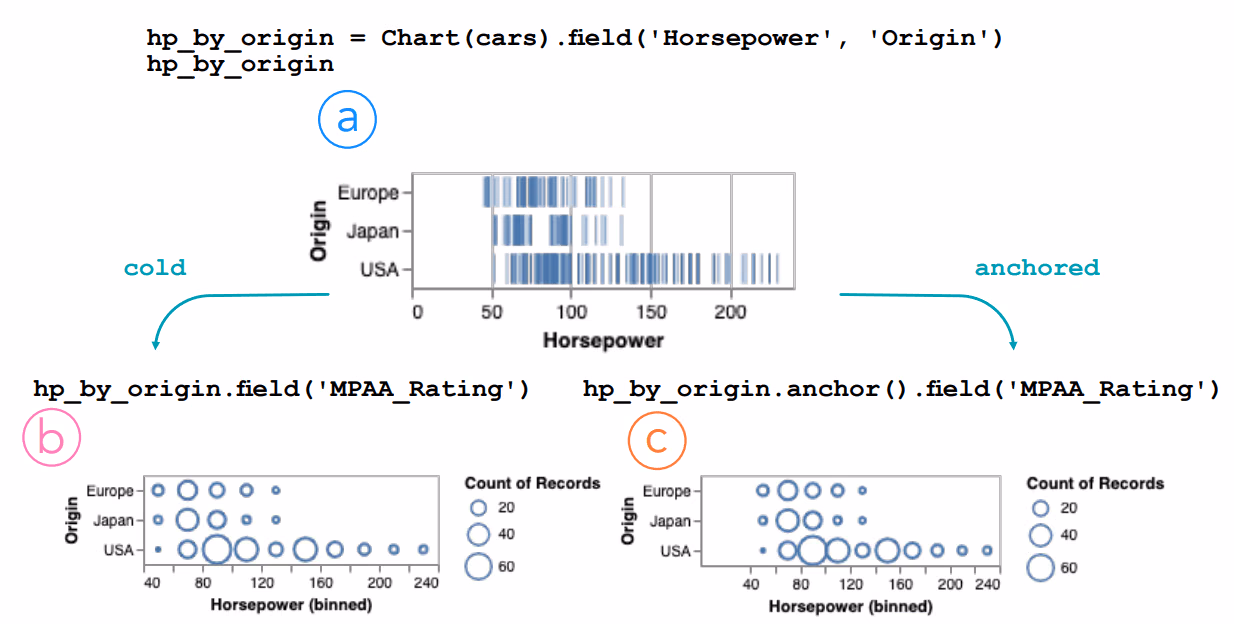

Teaser image

Abstract

Visualization recommender systems attempt to automate design decisions spanning choices of selected data, transformations, and visual encodings. However, across invocations such recommenders may lack the context of prior results, producing unstable outputs that override earlier design choices. To better balance automated suggestions with user intent, we contribute Dziban, a visualization API that supports both ambiguous specification and a novel anchoring mechanism for conveying desired context. Dziban uses the Draco knowledge base to automatically complete partial specifications and suggest appropriate visualizations. In addition, it extends Draco with chart similarity logic, enabling recommendations that also remain perceptually similar to a provided "anchor" chart. Existing APIs for exploratory visualization, such as ggplot2 and Vega-Lite, require fully specified chart definitions. In contrast, Dziban provides a more concise and flexible authoring experience through automated design, while preserving predictability and control through anchored recommendations.

Materials
