Visualization of Varying Hierarchies by Stable Layout of Voronoi Treemaps

Publication of algorithms that Dominik developed for my bachelor thesis.

Picture of Sebastian Schmechel
Sebastian Schmechel
Picture of Jonas Trümper
Jonas Trümper
Picture of Jürgen Döllner
Jürgen Döllner

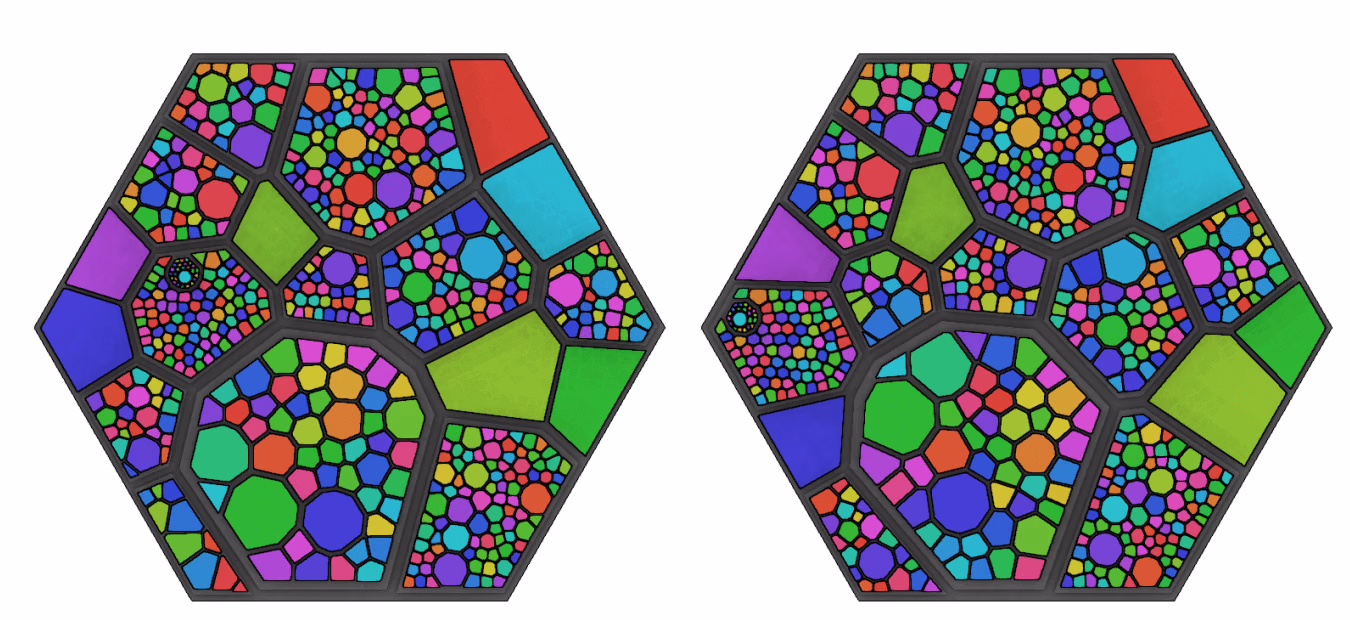

Teaser image

Use Voronoi tesselation for stable treemaps.


Space-restricted techniques for visualizing hierarchies generally achieve high scalability and readability (e.g., tree maps, bundle views, sunburst). However, the visualization layout directly depends on the hierarchy, that is, small changes to the hierarchy can cause wide-ranging changes to the layout. For this reason, it is difficult to use these techniques to compare similar variants of a hierarchy because users are confronted with layouts that do not expose the expected similarity. Voronoi treemaps appear to be promising candidates to overcome this limitation. However, existing Voronoi treemap algorithms do not provide deterministic layouts or assume a fixed hierarchy. In this paper we present an extended layout algorithm for Voronoi treemaps that provides a high degree of layout similiarity for varying hierarchies, such as software-system hierarchies. The implementation uses a deterministic initial-distribution approach that reduces the variation in node positioning even if changes in the underlying hierarchy data occur. Compared to existing layout algorithms, our algorithm achieves lower error rates with respect to node areas in the case of weighted Voronoi diagrams, which we show in a comparative study.
