Bespoke Visualization Navigation

In this example, we are showing how a project that I worked on for the Quaternary Geology of Wisconsin evolved in design. In the project, we wanted to add keyboard navigation to a bespoke visualization that accompanies a map. The visualization is a Correlation of Mapped Formations diagram showing mapped formations of glacial sediment in Wisconsin. Our assumptions about what makes a good navigation experience for this visualization changed over our time working together. This example documents that journey, while also demonstrating how one might think about making a bespoke visualization navigable using data navigator (or not!).

The chart is not created using a charting library here in the browser; it is a JPEG image. For this reason (and because it does not necessarily follow a grammar of visualization in its encoding and layout), it requires a manually-defined navigation structure (in other words, we cannot use our dimensions API).

In this example, we demonstrate three different navigation experiences: exploring by sediment source (a two-level hierarchy), navigating through time (a linear story mode), and a combined demo where both modes share one chart. All of the navigation structures were designed manually (in iterations in a design tool, Figma) and then implemented as nodes and edges (also "manually") in Data Navigator.

Take note in the examples below, looking at the structure inspector that follows each chart: there is a complex navigation structure followed by a simple list structure. Thinking about the design of navigation matters, and we hope this example demonstrates that there isn't really a "right" way to create navigation, because sometimes the context or audience depend on different design choices.

Explore by Sediment Source

Our first design was to organize this visualization to be explored. We wanted the user to meander through the data displayed, discovering the layout through sediment source.

Navigate the chart as a two-level hierarchy: three glacial sediment source regions at the top level, each containing geological formations. Left and right navigate between regions; up and down navigate within a column; left and right at the formation level cross to the nearest formation in the adjacent column.

Command	Key
Enter the structure	Activate the "Enter navigation area" button
Exit	`Esc`
Previous / next region (at region level)	`←` / `→`
Up / down within a column (at formation level)	`↑` / `↓`
Cross to nearest formation in the left / right column	`←` / `→` (at formation level)
Drill into region	`Enter`
Drill out to region	`Backspace`

The three columns wrap circularly at both levels. At the formation level, left and right target the formation in the adjacent column whose vertical center is closest to the current formation's vertical center.

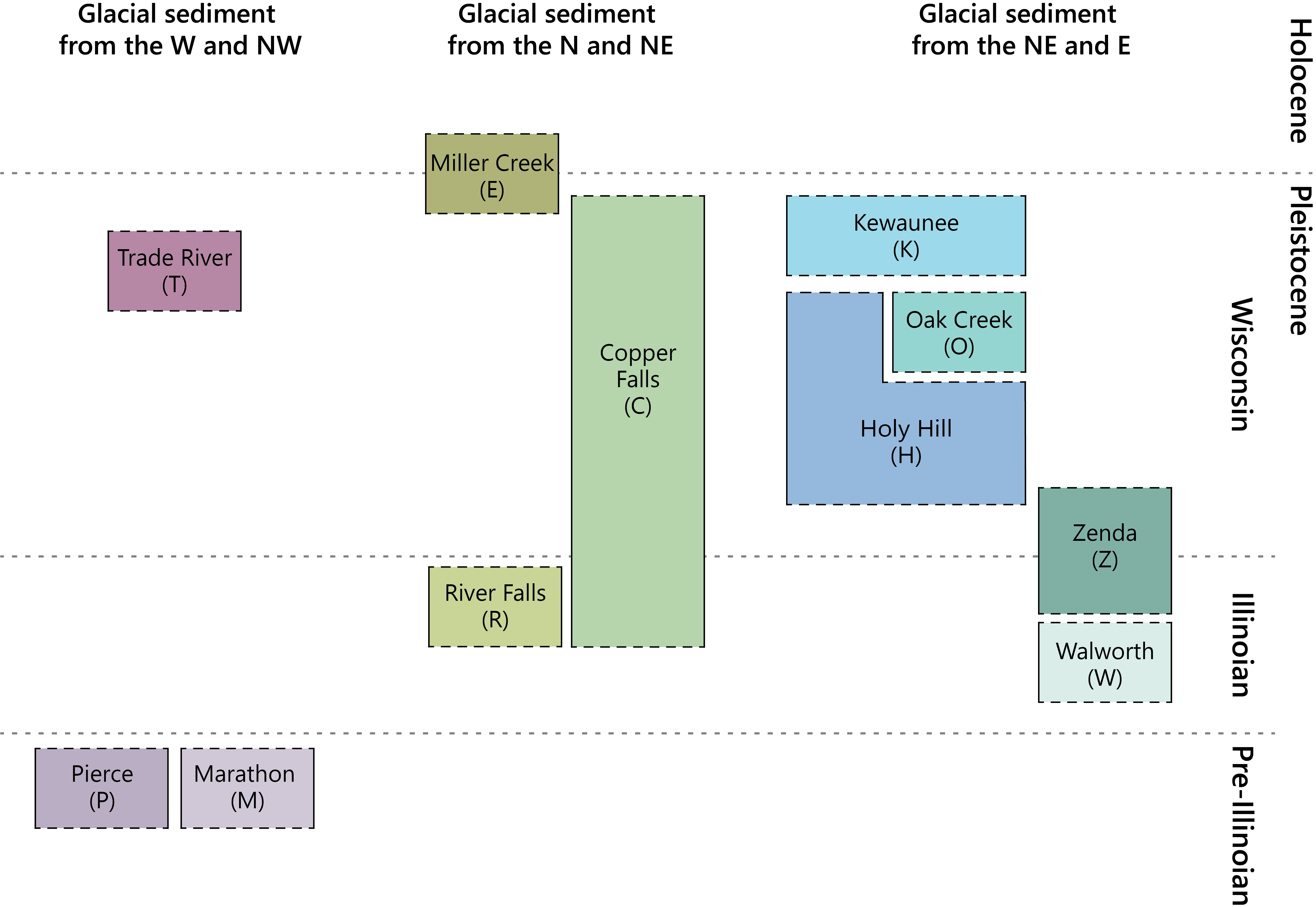

Correlation of Mapped Formations

Structure Inspector

Navigating as a Story, through Time

In the first iteration, we designed the chart to be navigable in all directions and focused on a hierarchy that organized each individual element according to the region that a glacial deposit came from. However, we realized that the scientific narrative for this visualization might also serve as a great guideline for creating a navigable experience: describing glacial sediment in Wisconsin through time.

My fantastic project partner, a geologist and mapping specialist named Caroline Rose, talked me through how one might "explain" this graphic to someone. We use this explanation as a foundation for a navigation experience.

So first, we describe the chart as if we are describing layers of sediment, starting with the top and describing where each layer comes from and during which era it was deposited. This means we navigate top to bottom, one "slice" at a time.

Notably, this new navigation experience is serial, one direction forward and backward. That means that it doesn't necessarily require data navigator (we could just write an alt document or a few paragraphs underneath).

However, we wanted to couple navigation (screen reader accessible as well as keyboard accessible) to visual captions that change while you navigate. This makes our demo useful in a classroom, museum, during a talk, or just as a demonstration, as well as an accessible artifact that can live on a website.

Keyboard Controls

Command	Key
Enter the structure	Activate the "Enter navigation area" button
Navigate forward (down through time)	`↓`
Navigate backward (up through time)	`↑`
Exit	`Esc`

Correlation of Mapped Formations

Navigate through the layers to explore the geological history of Wisconsin.

Structure Inspector

In our final example, we combine both navigation designs. The goal here is that some users may want to navigate a story of the correlation of formations, while in other contexts or other users may want to explore the data's arrangement in a more structural way, organized by the sediment source instead.

Both navigation modes below applied to one shared chart. Two entry buttons appear inside the chart wrapper: one for source-based navigation, one for time-based navigation. Activating one deactivates the other. The caption updates based on whichever mode is active.

Keyboard Controls

Mode	Command	Key
Both	Enter a mode	Activate the mode's entry button
Both	Exit	`Esc`
Source mode	Previous / next region	`←` / `→`
Source mode	Up / down within a column	`↑` / `↓`
Source mode	Cross to adjacent column	`←` / `→` (at formation level)
Source mode	Drill into / out of region	`Enter` / `Backspace`
Time mode	Navigate forward / backward through time	`↓` / `↑`

Correlation of Mapped Formations

Choose a navigation mode above to begin.

About This Example

This example demonstrates data-navigator on a bespoke visualization, no charting library involved. The chart is a JPEG image; data-navigator adds an accessible keyboard navigation layer on top of it via an absolutely-positioned HTML overlay inside the same wrapper element.

The navigation structure is defined manually (it does not use the dimensions API). There are two levels:

Region level: the three glacial sediment columns. Left and right navigate between them in a circular chain.

Formation level: the geological till units within each column. Up and down navigate within the column (top of screen = source, bottom = target). Left and right cross to the nearest formation in the adjacent column, determined by which formation has the closest vertical center. The columns wrap circularly at this level too.

Because left/right carry different meaning depending on the current node (region vs. formation), each level has distinct edges. The disambiguation is structural, not conditional: region nodes simply have no cross-column edges in their array. In the project Benthic by researchers at MIT, this is referred to as navigation based on visual congruence [1].

The holy-hill node uses the built-in spatialProperties.path feature. Setting a path string causes the rendering module to create an SVG overlay that traces the actual L-shape of that formation, so the focus indicator follows the non-rectangular boundary rather than a plain bounding box.

The combined demo (§3) uses shallow-copied edge objects to give each rendering its own independent exit handler without duplicating any node data. The pattern is { ...structure.edges, 'any-exit': { ...newHandler } } and then { ...structure, edges: shallowCopiedEdges }. The nodes object is shared by reference across all three renderings.

The Complete Code

This code is designed to work without a bundler. Run npm install data-navigator, copy the files into a src/ directory, and open index.html in your browser. The HTML uses an import map to resolve bare module specifiers.

If you're using a bundler (Vite, Webpack, etc.), you can simplify the import to import dataNavigator from 'data-navigator' and remove the import map from the HTML.

coordinator.js wires both navigation modes together. structure.js exports both structure (source-based hierarchy) and storyStructure (sequential time navigation) along with a callbacks object used to wire exit handlers after rendering initialization.

coordinator.jsstructure.jsindex.htmlstyle.css

import dataNavigator from 'data-navigator';
import { structure, storyStructure, callbacks } from './structure.js';

const captionEl = document.getElementById('caption');

// ── Time mode ────────────────────────────────────────────────────────────────
let timeCurrent = null,
    timePrevious = null;
let timeInput;

const enterTime = () => {
    if (sourceCurrent) {
        sourceRendering.remove(sourceCurrent);
        sourceCurrent = null;
        sourcePrevious = null;
    }
    if (sourceRendering.exitElement) sourceRendering.exitElement.style.display = 'none';
    const nextNode = timeInput.enter();
    if (nextNode) timeLifecycle(nextNode);
};

const timeRendering = dataNavigator.rendering({
    elementData: storyStructure.nodes,
    defaults: { cssClass: 'dn-story-node' },
    suffixId: 'time',
    root: {
        id: 'chart-wrapper',
        description:
            'Correlation of Mapped Formations showing the time period of deposition for each mapped formation of glacial sediment through time in Wisconsin.',
        width: '100%',
        height: 0
    },
    entryButton: { include: true, callbacks: { click: enterTime } },
    exitElement: { include: true }
});
timeRendering.initialize();
timeRendering.entryButton.innerText = 'Navigate sediment by time';

callbacks.onTimeExit = () => {
    timeRendering.exitElement.style.display = 'block';
    timeInput.focus(timeRendering.exitElement.id);
    if (timeCurrent) {
        timeRendering.remove(timeCurrent);
        timeCurrent = null;
    }
    if (captionEl) captionEl.textContent = '';
};

timeInput = dataNavigator.input({
    structure: storyStructure,
    navigationRules: storyStructure.navigationRules,
    entryPoint: 'st-01',
    exitPoint: timeRendering.exitElement?.id
});

const timeMove = direction => {
    const nextNode = timeInput.move(timeCurrent, direction);
    if (nextNode) timeLifecycle(nextNode);
};

const timeLifecycle = nextNode => {
    if (timePrevious) timeRendering.remove(timePrevious);
    const element = timeRendering.render({ renderId: nextNode.renderId, datum: nextNode });
    element.addEventListener('keydown', e => {
        const direction = timeInput.keydownValidator(e);
        if (direction) {
            e.preventDefault();
            timeMove(direction);
        }
    });
    element.addEventListener('focus', () => {
        if (captionEl) captionEl.textContent = nextNode.semantics.label;
    });
    timeInput.focus(nextNode.renderId);
    timePrevious = timeCurrent;
    timeCurrent = nextNode.id;
};

// ── Source mode ──────────────────────────────────────────────────────────────
let sourceCurrent = null,
    sourcePrevious = null;
let sourceInput;

const enterSource = () => {
    if (timeCurrent) {
        timeRendering.remove(timeCurrent);
        timeCurrent = null;
        timePrevious = null;
    }
    if (timeRendering.exitElement) timeRendering.exitElement.style.display = 'none';
    const nextNode = sourceInput.enter();
    if (nextNode) sourceLifecycle(nextNode);
};

const sourceRendering = dataNavigator.rendering({
    elementData: structure.nodes,
    defaults: { cssClass: 'dn-bespoke-node' },
    suffixId: 'source',
    root: {
        id: 'chart-wrapper',
        description:
            'Stratigraphic chart of glacial sediment deposits in Wisconsin. Three columns by sediment source direction.',
        width: '100%',
        height: 0
    },
    entryButton: { include: true, callbacks: { click: enterSource } },
    exitElement: { include: true }
});
sourceRendering.initialize();
sourceRendering.entryButton.innerText = 'Explore sediment by source';

callbacks.onSourceExit = () => {
    sourceRendering.exitElement.style.display = 'block';
    sourceInput.focus(sourceRendering.exitElement.id);
    if (sourceCurrent) {
        sourceRendering.remove(sourceCurrent);
        sourceCurrent = null;
    }
    if (captionEl) captionEl.textContent = '';
};

sourceInput = dataNavigator.input({
    structure,
    navigationRules: structure.navigationRules,
    entryPoint: 'glacial-sediment-w-nw',
    exitPoint: sourceRendering.exitElement?.id
});

const sourceMove = direction => {
    const nextNode = sourceInput.move(sourceCurrent, direction);
    if (nextNode) sourceLifecycle(nextNode);
};

const sourceLifecycle = nextNode => {
    if (sourcePrevious) sourceRendering.remove(sourcePrevious);
    const element = sourceRendering.render({ renderId: nextNode.renderId, datum: nextNode });
    element.addEventListener('keydown', e => {
        const direction = sourceInput.keydownValidator(e);
        if (direction) {
            e.preventDefault();
            sourceMove(direction);
        }
    });
    element.addEventListener('focus', () => {
        if (captionEl) captionEl.textContent = nextNode.semantics.label;
    });
    sourceInput.focus(nextNode.renderId);
    sourcePrevious = sourceCurrent;
    sourceCurrent = nextNode.id;
};

// All spatial coordinates use scale 1/8 of the original 4096×2821 SVG space.
// Displayed image is 512×353 px, so original coords ÷ 8 = CSS pixel position.

export const callbacks = { onSourceExit: null, onTimeExit: null };

export const structure = {
    nodes: {
        'glacial-sediment-w-nw': {
            id: 'glacial-sediment-w-nw',
            renderId: 'glacial-sediment-w-nw',
            edges: ['gswnw-gsnne', 'gsnee-gswnw', 'gswnw-trade-river', 'any-exit'],
            data: {},
            semantics: {
                label: 'Glacial sediment from the W and NW. Region. Contains Trade River, Pierce, and Marathon.'
            },
            spatialProperties: { x: 1, y: 1, width: 142, height: 351 }
        },
        'glacial-sediment-n-ne': {
            id: 'glacial-sediment-n-ne',
            renderId: 'glacial-sediment-n-ne',
            edges: ['gswnw-gsnne', 'gsnne-gsnee', 'gsnne-miller-creek', 'any-exit'],
            data: {},
            semantics: {
                label: 'Glacial sediment from the N and NE. Region. Contains Miller Creek, Copper Falls, and River Falls.'
            },
            spatialProperties: { x: 144, y: 1, width: 146, height: 351 }
        },
        'glacial-sediment-ne-e': {
            id: 'glacial-sediment-ne-e',
            renderId: 'glacial-sediment-ne-e',
            edges: ['gsnne-gsnee', 'gsnee-gswnw', 'gsnee-kewaunee', 'any-exit'],
            data: {},
            semantics: {
                label: 'Glacial sediment from the NE and E. Region. Contains Kewaunee, Oak Creek, Holy Hill, Zenda, and Walworth.'
            },
            spatialProperties: { x: 291, y: 1, width: 177, height: 351 }
        },
        'trade-river': {
            id: 'trade-river',
            renderId: 'trade-river',
            edges: ['gswnw-trade-river', 'trade-river-pierce', 'trade-river-miller-creek', 'any-exit'],
            data: {},
            semantics: {
                label: 'Trade River. Sediment from W/NW, deposited towards the end of the Wisconsin glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 42, y: 89, width: 53, height: 32 }
        },
        pierce: {
            id: 'pierce',
            renderId: 'pierce',
            edges: [
                'gswnw-pierce-out',
                'trade-river-pierce',
                'pierce-marathon',
                'pierce-marathon-lr',
                'walworth-pierce-lr',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'Pierce. Sediment from W/NW, deposited by the Pre-Illinoian glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 13, y: 291, width: 53, height: 32 }
        },
        marathon: {
            id: 'marathon',
            renderId: 'marathon',
            edges: [
                'gswnw-marathon-out',
                'pierce-marathon',
                'pierce-marathon-lr',
                'marathon-river-falls-lr',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'Marathon. Sediment from W/NW, deposited by the Pre-Illinoian glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 70, y: 291, width: 53, height: 32 }
        },
        'miller-creek': {
            id: 'miller-creek',
            renderId: 'miller-creek',
            edges: [
                'gsnne-miller-creek',
                'miller-creek-copper-falls',
                'trade-river-miller-creek',
                'miller-creek-copper-falls-r',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'Miller Creek. Top-most sediment from N/NE, deposited at the end of the Wisconsin glaciation during the Pleistocene Epoch and also deposited during the early Holocene Epoch.'
            },
            spatialProperties: { x: 165, y: 52, width: 53, height: 32 }
        },
        'copper-falls': {
            id: 'copper-falls',
            renderId: 'copper-falls',
            edges: [
                'gsnne-copper-falls-out',
                'miller-creek-copper-falls',
                'copper-falls-river-falls',
                'river-falls-copper-falls-lr',
                'copper-falls-kewaunee-lr',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'Copper Falls. Sediment from N/NE, deposited from the middle of the Illinoian glaciation until the end of the Wisconsin glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 222, y: 76, width: 53, height: 176 }
        },
        'river-falls': {
            id: 'river-falls',
            renderId: 'river-falls',
            edges: [
                'gsnne-river-falls-out',
                'copper-falls-river-falls',
                'marathon-river-falls-lr',
                'river-falls-copper-falls-lr',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'River Falls. Sediment from N/NE, deposited later by the Illinoian glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 166, y: 220, width: 53, height: 32 }
        },
        kewaunee: {
            id: 'kewaunee',
            renderId: 'kewaunee',
            edges: ['gsnee-kewaunee', 'kewaunee-oak-creek', 'copper-falls-kewaunee-lr', 'kewaunee-zenda-r', 'any-exit'],
            data: {},
            semantics: {
                label: 'Kewaunee. Sediment from NE/E, deposited at the end of the Wisconsin glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 306, y: 76, width: 94, height: 32 }
        },
        'oak-creek': {
            id: 'oak-creek',
            renderId: 'oak-creek',
            edges: [
                'gsnee-oak-creek-out',
                'kewaunee-oak-creek',
                'oak-creek-holy-hill',
                'holy-hill-oak-creek-lr',
                'oak-creek-zenda-r',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'Oak Creek. Sediment from NE/E, deposited in the middle of the Wisconsin glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 347, y: 113, width: 53, height: 32 }
        },
        'holy-hill': {
            id: 'holy-hill',
            renderId: 'holy-hill',
            edges: [
                'gsnee-holy-hill-out',
                'oak-creek-holy-hill',
                'holy-hill-zenda',
                'copper-falls-holy-hill-l',
                'holy-hill-oak-creek-lr',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'Holy Hill. Sediment from NE/E, deposited from early until after the middle of the Wisconsin glaciation, during the Pleistocene Epoch. Oak Creek was deposited alongside during the later half.'
            },
            spatialProperties: {
                x: 305,
                y: 113,
                width: 95,
                height: 85,
                path: 'M347.75,109.5V144.5H403.125V200.5H301.875V109.5H347.75Z'
            }
        },
        zenda: {
            id: 'zenda',
            renderId: 'zenda',
            edges: [
                'gsnee-zenda-out',
                'holy-hill-zenda',
                'zenda-walworth',
                'holy-hill-zenda-l',
                'zenda-pierce-r',
                'any-exit'
            ],
            data: {},
            semantics: {
                label: 'Zenda. Sediment from NE/E, deposited in during late Illinoian and early Wisconsin glaciations during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 404, y: 189, width: 53, height: 50 }
        },
        walworth: {
            id: 'walworth',
            renderId: 'walworth',
            edges: ['gsnee-walworth-out', 'zenda-walworth', 'holy-hill-walworth-l', 'walworth-pierce-lr', 'any-exit'],
            data: {},
            semantics: {
                label: 'Walworth. Sediment from NE/E, deposited in the middle of the Illinoian glaciation during the Pleistocene Epoch.'
            },
            spatialProperties: { x: 404, y: 242, width: 53, height: 32 }
        }
    },
    edges: {
        'gswnw-gsnne': {
            source: 'glacial-sediment-w-nw',
            target: 'glacial-sediment-n-ne',
            navigationRules: ['left', 'right']
        },
        'gsnne-gsnee': {
            source: 'glacial-sediment-n-ne',
            target: 'glacial-sediment-ne-e',
            navigationRules: ['left', 'right']
        },
        'gsnee-gswnw': {
            source: 'glacial-sediment-ne-e',
            target: 'glacial-sediment-w-nw',
            navigationRules: ['left', 'right']
        },
        'gswnw-trade-river': {
            source: 'glacial-sediment-w-nw',
            target: 'trade-river',
            navigationRules: ['drill-in', 'drill-out']
        },
        'gsnne-miller-creek': {
            source: 'glacial-sediment-n-ne',
            target: 'miller-creek',
            navigationRules: ['drill-in', 'drill-out']
        },
        'gsnee-kewaunee': {
            source: 'glacial-sediment-ne-e',
            target: 'kewaunee',
            navigationRules: ['drill-in', 'drill-out']
        },
        'gswnw-pierce-out': { source: 'glacial-sediment-w-nw', target: 'pierce', navigationRules: ['drill-out'] },
        'gswnw-marathon-out': { source: 'glacial-sediment-w-nw', target: 'marathon', navigationRules: ['drill-out'] },
        'gsnne-copper-falls-out': {
            source: 'glacial-sediment-n-ne',
            target: 'copper-falls',
            navigationRules: ['drill-out']
        },
        'gsnne-river-falls-out': {
            source: 'glacial-sediment-n-ne',
            target: 'river-falls',
            navigationRules: ['drill-out']
        },
        'gsnee-oak-creek-out': { source: 'glacial-sediment-ne-e', target: 'oak-creek', navigationRules: ['drill-out'] },
        'gsnee-holy-hill-out': { source: 'glacial-sediment-ne-e', target: 'holy-hill', navigationRules: ['drill-out'] },
        'gsnee-zenda-out': { source: 'glacial-sediment-ne-e', target: 'zenda', navigationRules: ['drill-out'] },
        'gsnee-walworth-out': { source: 'glacial-sediment-ne-e', target: 'walworth', navigationRules: ['drill-out'] },
        'trade-river-pierce': { source: 'trade-river', target: 'pierce', navigationRules: ['up', 'down'] },
        'pierce-marathon': { source: 'pierce', target: 'marathon', navigationRules: ['up', 'down'] },
        'miller-creek-copper-falls': {
            source: 'miller-creek',
            target: 'copper-falls',
            navigationRules: ['up', 'down']
        },
        'copper-falls-river-falls': { source: 'copper-falls', target: 'river-falls', navigationRules: ['up', 'down'] },
        'kewaunee-oak-creek': { source: 'kewaunee', target: 'oak-creek', navigationRules: ['up', 'down'] },
        'oak-creek-holy-hill': { source: 'oak-creek', target: 'holy-hill', navigationRules: ['up', 'down'] },
        'holy-hill-zenda': { source: 'holy-hill', target: 'zenda', navigationRules: ['up', 'down'] },
        'zenda-walworth': { source: 'zenda', target: 'walworth', navigationRules: ['up', 'down'] },
        'trade-river-miller-creek': {
            source: 'trade-river',
            target: 'miller-creek',
            navigationRules: ['left', 'right']
        },
        'pierce-marathon-lr': { source: 'pierce', target: 'marathon', navigationRules: ['left', 'right'] },
        'marathon-river-falls-lr': { source: 'marathon', target: 'river-falls', navigationRules: ['left', 'right'] },
        'miller-creek-copper-falls-r': { source: 'miller-creek', target: 'copper-falls', navigationRules: ['right'] },
        'river-falls-copper-falls-lr': {
            source: 'river-falls',
            target: 'copper-falls',
            navigationRules: ['left', 'right']
        },
        'copper-falls-kewaunee-lr': { source: 'copper-falls', target: 'kewaunee', navigationRules: ['left', 'right'] },
        'copper-falls-holy-hill-l': { source: 'copper-falls', target: 'holy-hill', navigationRules: ['left'] },
        'kewaunee-zenda-r': { source: 'kewaunee', target: 'zenda', navigationRules: ['right'] },
        'holy-hill-oak-creek-lr': { source: 'holy-hill', target: 'oak-creek', navigationRules: ['left', 'right'] },
        'oak-creek-zenda-r': { source: 'oak-creek', target: 'zenda', navigationRules: ['right'] },
        'holy-hill-zenda-l': { source: 'holy-hill', target: 'zenda', navigationRules: ['left'] },
        'zenda-pierce-r': { source: 'zenda', target: 'pierce', navigationRules: ['right'] },
        'holy-hill-walworth-l': { source: 'holy-hill', target: 'walworth', navigationRules: ['left'] },
        'walworth-pierce-lr': { source: 'walworth', target: 'pierce', navigationRules: ['left', 'right'] },
        'any-exit': {
            source: (d, c) => c,
            target: () => {
                if (callbacks.onSourceExit) callbacks.onSourceExit();
                return '';
            },
            navigationRules: ['exit']
        }
    },
    navigationRules: {
        left: { key: 'ArrowLeft', direction: 'source' },
        right: { key: 'ArrowRight', direction: 'target' },
        up: { key: 'ArrowUp', direction: 'source' },
        down: { key: 'ArrowDown', direction: 'target' },
        'drill-in': { key: 'Enter', direction: 'target' },
        'drill-out': { key: 'Backspace', direction: 'source' },
        exit: { key: 'Escape', direction: 'target' }
    }
};

export const storyStructure = {
    nodes: {
        'st-01': {
            id: 'st-01',
            renderId: 'st-01',
            edges: ['st-01-02', 'st-exit'],
            data: {},
            semantics: {
                label: 'Layer 1 of 13. The youngest, topmost glacial deposit from the end of the Pleistocene into the Holocene Epoch. Only Miller Creek is present, deposited from the N/NE.'
            },
            spatialProperties: { x: 6, y: 56, width: 459, height: 15 }
        },
        'st-02': {
            id: 'st-02',
            renderId: 'st-02',
            edges: ['st-01-02', 'st-02-03', 'st-exit'],
            data: {},
            semantics: {
                label: 'Miller Creek and Copper Falls are deposited from the N/NE and Kewaunee is deposited from the NE/E. Close to the very end of the Wisconsin glaciation during the Pleistocene Epoch. Layer 2 of 13.'
            },
            spatialProperties: { x: 6, y: 82, width: 459, height: 1 }
        },
        'st-03': {
            id: 'st-03',
            renderId: 'st-03',
            edges: ['st-02-03', 'st-03-04', 'st-exit'],
            data: {},
            semantics: {
                label: 'Copper Falls is deposited from the N/NE and Kewaunee is deposited from the NE/E. Close to the end of the Wisconsin glaciation during the Pleistocene Epoch. Layer 3 of 13.'
            },
            spatialProperties: { x: 6, y: 89, width: 459, height: 1 }
        },
        'st-04': {
            id: 'st-04',
            renderId: 'st-04',
            edges: ['st-03-04', 'st-04-05', 'st-exit'],
            data: {},
            semantics: {
                label: 'Trade River is deposited from the W/NW, Copper Falls is deposited from the N/NE, and Kewaunee is deposited from the NE/E. In the final quarter of the Wisconsin glaciation during the Pleistocene Epoch. Layer 4 of 13.'
            },
            spatialProperties: { x: 6, y: 97, width: 459, height: 8 }
        },
        'st-05': {
            id: 'st-05',
            renderId: 'st-05',
            edges: ['st-04-05', 'st-05-06', 'st-exit'],
            data: {},
            semantics: {
                label: 'Trade River is deposited from the W/NW, Copper Falls is deposited from the N/NE, and Holy Hill and Oak Creek is deposited from the NE/E. In the later middle of the Wisconsin glaciation during the Pleistocene Epoch. Layer 5 of 13.'
            },
            spatialProperties: { x: 6, y: 116, width: 459, height: 24 }
        },
        'st-06': {
            id: 'st-06',
            renderId: 'st-06',
            edges: ['st-05-06', 'st-06-07', 'st-exit'],
            data: {},
            semantics: {
                label: 'Copper Falls is deposited from the N/NE and Holy Hill is deposited from the NE/E. In the earlier middle of the Wisconsin glaciation during the Pleistocene Epoch. Layer 6 of 13.'
            },
            spatialProperties: { x: 6, y: 152, width: 459, height: 31 }
        },
        'st-07': {
            id: 'st-07',
            renderId: 'st-07',
            edges: ['st-06-07', 'st-07-08', 'st-exit'],
            data: {},
            semantics: {
                label: 'Copper Falls is deposited from the N/NE and Holy Hill and Zenda is deposited from the NE/E. Close to the start of the Wisconsin glaciation during the Pleistocene Epoch. Layer 7 of 13.'
            },
            spatialProperties: { x: 6, y: 194, width: 459, height: 1 }
        },
        'st-08': {
            id: 'st-08',
            renderId: 'st-08',
            edges: ['st-07-08', 'st-08-09', 'st-exit'],
            data: {},
            semantics: {
                label: 'Copper Falls is deposited from the N/NE and Zenda is deposited from the NE/E. At the start of the Wisconsin glaciation during the Pleistocene Epoch. Layer 8 of 13.'
            },
            spatialProperties: { x: 6, y: 202, width: 459, height: 12 }
        },
        'st-09': {
            id: 'st-09',
            renderId: 'st-09',
            edges: ['st-08-09', 'st-09-10', 'st-exit'],
            data: {},
            semantics: {
                label: 'River Falls and Copper Falls is deposited from the N/NE and Zenda is deposited from the NE/E. At the end of the Illinoian glaciation during the Pleistocene Epoch. Layer 9 of 13.'
            },
            spatialProperties: { x: 6, y: 225, width: 459, height: 9 }
        },
        'st-10': {
            id: 'st-10',
            renderId: 'st-10',
            edges: ['st-09-10', 'st-10-11', 'st-exit'],
            data: {},
            semantics: {
                label: 'River Falls and Copper Falls is deposited from the N/NE and Walworth is deposited from the NE/E. In the middle of the Illinoian glaciation during the Pleistocene Epoch. Layer 10 of 13.'
            },
            spatialProperties: { x: 6, y: 246, width: 459, height: 1 }
        },
        'st-11': {
            id: 'st-11',
            renderId: 'st-11',
            edges: ['st-10-11', 'st-11-12', 'st-exit'],
            data: {},
            semantics: {
                label: 'Walworth is deposited from the NE/E. Near the beginning of the Illinoian glaciation during the Pleistocene Epoch. Layer 11 of 13.'
            },
            spatialProperties: { x: 6, y: 257, width: 459, height: 11 }
        },
        'st-12': {
            id: 'st-12',
            renderId: 'st-12',
            edges: ['st-11-12', 'st-12-13', 'st-exit'],
            data: {},
            semantics: { label: 'No deposits. At the start of the Illinoian glaciation. Layer 12 of 13.' },
            spatialProperties: { x: 6, y: 279, width: 459, height: 5 }
        },
        'st-13': {
            id: 'st-13',
            renderId: 'st-13',
            edges: ['st-12-13', 'st-exit'],
            data: {},
            semantics: {
                label: 'Pierce and Marathon are deposited from the NE/E. At the end of the Pre-Illinoian glaciation during the Pleistocene Epoch. Layer 13 of 13, the bottommost layer.'
            },
            spatialProperties: { x: 6, y: 295, width: 459, height: 22 }
        }
    },
    edges: {
        'st-01-02': { source: 'st-01', target: 'st-02', navigationRules: ['up', 'down'] },
        'st-02-03': { source: 'st-02', target: 'st-03', navigationRules: ['up', 'down'] },
        'st-03-04': { source: 'st-03', target: 'st-04', navigationRules: ['up', 'down'] },
        'st-04-05': { source: 'st-04', target: 'st-05', navigationRules: ['up', 'down'] },
        'st-05-06': { source: 'st-05', target: 'st-06', navigationRules: ['up', 'down'] },
        'st-06-07': { source: 'st-06', target: 'st-07', navigationRules: ['up', 'down'] },
        'st-07-08': { source: 'st-07', target: 'st-08', navigationRules: ['up', 'down'] },
        'st-08-09': { source: 'st-08', target: 'st-09', navigationRules: ['up', 'down'] },
        'st-09-10': { source: 'st-09', target: 'st-10', navigationRules: ['up', 'down'] },
        'st-10-11': { source: 'st-10', target: 'st-11', navigationRules: ['up', 'down'] },
        'st-11-12': { source: 'st-11', target: 'st-12', navigationRules: ['up', 'down'] },
        'st-12-13': { source: 'st-12', target: 'st-13', navigationRules: ['up', 'down'] },
        'st-exit': {
            source: (d, c) => c,
            target: () => {
                if (callbacks.onTimeExit) callbacks.onTimeExit();
                return '';
            },
            navigationRules: ['exit']
        }
    },
    navigationRules: {
        up: { key: 'ArrowUp', direction: 'source' },
        down: { key: 'ArrowDown', direction: 'target' },
        exit: { key: 'Escape', direction: 'target' }
    }
};

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467

html

<html>
    <head>
        <link rel="stylesheet" href="./src/style.css" />
        <script type="importmap">
            {
                "imports": {
                    "data-navigator": "https://cdn.jsdelivr.net/npm/data-navigator@2.4.1/dist/index.js"
                }
            }
        </script>
    </head>
    <body>
        <div style="display: flex; gap: 2em; flex-wrap: wrap; align-items: flex-start;">
            <div>
                <h3>Correlation of Mapped Formations</h3>
                <div id="chart-wrapper" style="position: relative; display: inline-block;">
                    <img src="bespoke.jpg" aria-hidden="true" alt="" width="512" height="353" style="display: block;" />
                </div>
                <div
                    id="caption"
                    role="status"
                    aria-live="polite"
                    style="margin-top: 0.75rem; min-height: 3em; max-width: 512px; padding: 0.75rem; border: 1px solid #ccc; border-radius: 4px;"
                >
                    Choose a navigation mode above to begin.
                </div>
            </div>
        </div>
    </body>
    <script type="module" src="./src/coordinator.js"></script>
</html>

css

.dn-bespoke-node {
    pointer-events: none;
    background: transparent;
    border: none;
    position: absolute;
    margin: 0;
}

.dn-bespoke-node:focus {
    outline: 3px solid #1e3369;
    outline-offset: 2px;
}

.dn-node-path {
    fill: none;
    stroke: #1e3369;
    stroke-width: 3;
}

.dn-story-node {
    pointer-events: none;
    background: transparent;
    border: none;
    position: absolute;
    margin: 0;
}

.dn-story-node:focus {
    outline: 3px solid #1e3369;
    outline-offset: 2px;
}

You can also find this example as a ready-to-run project on GitHub.

Bespoke Visualization Navigation ​

Explore by Sediment Source ​

Correlation of Mapped Formations ​

Structure Inspector

Navigating as a Story, through Time ​

Keyboard Controls ​

Correlation of Mapped Formations ​

Structure Inspector

Combined Navigation ​

Keyboard Controls ​

Correlation of Mapped Formations ​

About This Example ​

The Complete Code ​

Bespoke Visualization Navigation

Explore by Sediment Source

Correlation of Mapped Formations

Navigating as a Story, through Time

Keyboard Controls

Correlation of Mapped Formations

Combined Navigation

Keyboard Controls

Correlation of Mapped Formations

About This Example

The Complete Code
